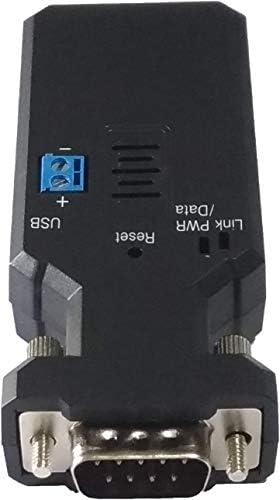

Gozens Bluetooth V4.2 BLE RS-232 Adapter Internal Chip Antenna for All OS Platform, iOS, Android, Windows or etc.

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Model: BLE-232D (Internal Ant.)


Power supply:
1. Voltage: 5~27 VDC, Don’t exceed the limit.
2. There’re 2 ways to power the adapter: 2P Terminal Block (Blue) and pin9 of DB9, please choose one. Don’t power the adapter by more than one source.

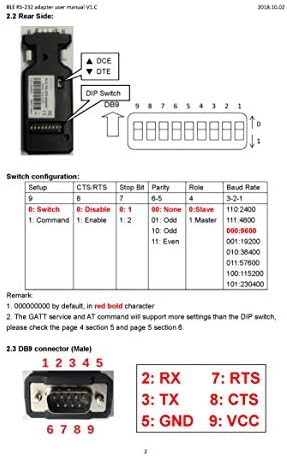

Specifications:
1.Default value:

• Baud rate: 9,600 bps
• Data bit: 8
• Parity: none
• Stop bit: 1
• Flow control: none
• Device Name: BLE 232
• Pin code:“123456” if necessary

2. Serial Port:

• Baud Rate: 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8/921.6 Kbps
• Parity: none/even/odd
• Stop bit: 1/1.5/2
• Data bit: 7/8

3. Range: max. 50 m in open space (The range is depend on the real environment)
4. TX Power: Max. 3 dBm
5. RX Sensitivity: -89 dBm typical
6. TX current consumption of 15.6 mA (radio only, 0 dbm)
7. Operation Temperature: –40 °C to +70 °C
8. Dimensions: 87 mm (L) x 34 mm (W) x 18 mm (H)
9. Antenna Gain: max. 2 dB


Remark: All contents are subject to change without notice.
Bluetooth V4.2 USB Adapter (50 meters)
Bluetooth Low Energy BLE V4.2 – Peer to Peer
Link with OS platform, ex. iOS, Android, Windows or etc.
Command set via COM port, DIP switch or APP. NOT plug and play
Support the GATT service
