FriendlyElec Nanopi R5S Mini Router OpenWRT with Three Gbps Ethernet Ports 2GB RAM LPDDR4X Based in RK3399 Soc for IOT NAS Smart Home Gateway (with Metal Case) Support U-Boot Linux Ubuntu

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
The NanoPi R5S (as “R5S”) is a high-end FriendlyElec mini-router with edge-computing and three Gbps Ethernet ports.lt is powered through PD or USB Type C port.It works with FriendlyWRT, Ubuntu, Armbian etc.

-Feature-

CPU: Model: Rockchip RK3568B2

Number of Cores: Quad-core ARM Cortex-A55

Frequency: 4 x Cortex-A55 up to 2.0GHz

GPU: Mali-G52 1-Core-2EE GPU,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile

VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder

NPU: Support 0.8T

Memory: 2GB RAM LPDDR4X

Flash: 8GB eMMC 5.1 Flash

MicroSD: support UHS-I

Connectivity:

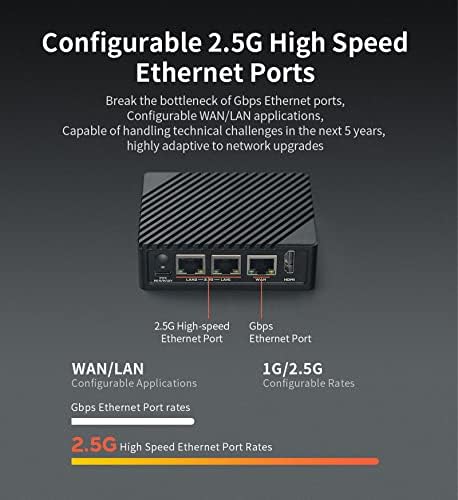

Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip
PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip

USB: USB 3.0 Host x2: USB Type A

GPIO: 12-pin 0.5mm FPC connector

Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps

Type-C x1: Support PD, 5V/9V/12V Power Input

Fan: 5V Fan connector

Working Temperature: 0°℃ to 70°℃

Power: support PD, 5V/9V/12V input , via USB-C connector or Pin header

-OS/Software-

OS Support：FriendlyWrt 22.03 (64-bit)；FriendlyCore Focal Lite(Base on Ubuntu 20.04)

Kernel version：Linux-5.10-LTS；U-boot-2017.09

-Dimension-

PCB: 8 Layer

Dimension: 68×94.5×30 mm (with Case)

Weight:  260g（with Case)

-Package Content-
1x  Nanopi R5S 2GB Mini Router- Combo with Metal Case

-Technical Support-

• Wiki: youyeetoo.com/blog/nanopi-r5s-ysdpnanor5sa-135

• Please click “WayPonDEV” and ask a question or monica#smartfire.cn (f——>@) skype: monica_9122

• Please leave the message in our forum by forum.youyeetoo.com/
