Cable Sourcing – 100ft (30m) CAT5e Cable, Outdoor External Ethernet Cable, Weatherproof, Network Cable, LAN, Router, WiFi 6, CCTV, Highspeed, RJ45 Plugs

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
PRODUCT DESCRIPTION:

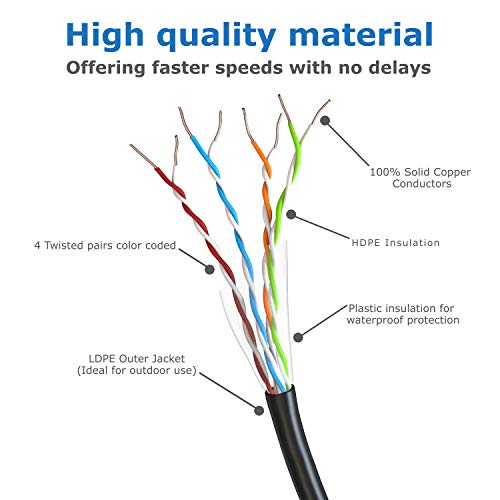

Copper conductor: 0.51mm,
Colour-coded PE insulation,
HDPE jacket Operation temperature: -10°C to 60 °C (ideal for outdoor use),
24 AWG UTP (unshielded Twisted Pair),

Pair Identification:
Pair 1 – Blue/White with Blue Stripe,
Pair 2 – Orange/White with Orange stripe,
Pair 3 – Green/White with Green stripe,
Pair 4 – Brown/White with Brown stripe,

Characteristic Impedance: 100ohms +/-15%,
Capacitance: 14pf/ft nominal,
DC resistance /Unbalance: 28.6ohms/1000’Max/5% Max,
Dielectric Breakdown: 2500 Volts DC Conductor to Conductor,
Nom.Velocity of Propagation: FEP=76%,
Maximum Skew: 25ns@100 meters

Product Features:
HD Quality.
Gold plated RJ45 connectors.
Moulded & Snagless covers, ready for plug and play.
Allows extensions to external rooms from current network

Compliance:
TIA/EIA 568b Standard
RoHS
Fluke Tested
ISO 9001 2000

100% satisfaction or your money back
Product Dimensions ‏ : ‎ 7.09 x 7.09 x 2.36 inches; 1.01 Pounds
Item model number ‏ : ‎ CAT5e CCA
Date First Available ‏ : ‎ June 1, 2020
Manufacturer ‏ : ‎ Cable Sourcing
ASIN ‏ : ‎ B089HNLJ4M

INTERNAL & EXTERNAL (outdoor use) suitable for CCTV, IP camera’s, Computer Networking cabling, PC’s, Laptops, VoIP telephone systems, modems, routers, hubs, network printers, Smart TV, open boxes
CORE CONDUCTOR 0.51mm, 24AWG, FULLY compliant with RoHS, ISO9001 2000, TIA/EIA 568B, Fluke Tested – professional quality for High Definition (HD), data speed (10/100/1000mb). This will increase the reliability and accuracy of the data transfer

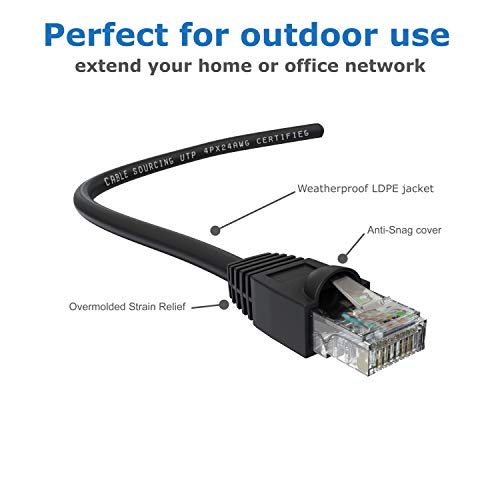

OUTER JACKET is constructed from a high quality weatherproof HDPE jacket (High-Density PolyEthlene) protects against water, heat and cold, ideal for EXTERNAL/INTERNAL use and UV resistant, especially for extending your network outdoors

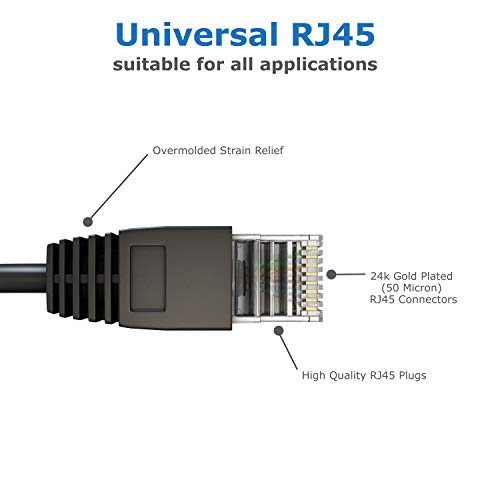

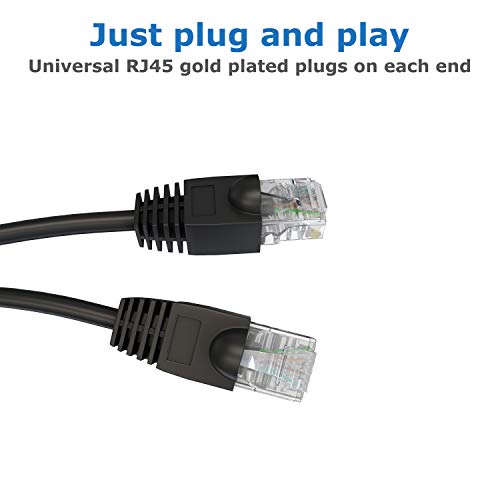

EASY installation with moulded RJ45 gold plated connectors, ready for plug and play, with overmolded strain relief to protect the cable and anti-snagless covers to protect the clips during installation
WORRY-FREE LIFETIME WARRANTY – Lifetime product replacement warranty or money-back without ask any question
