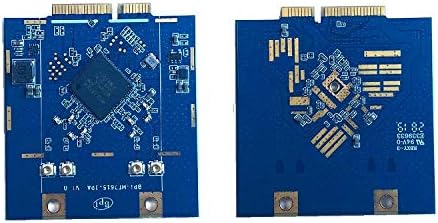

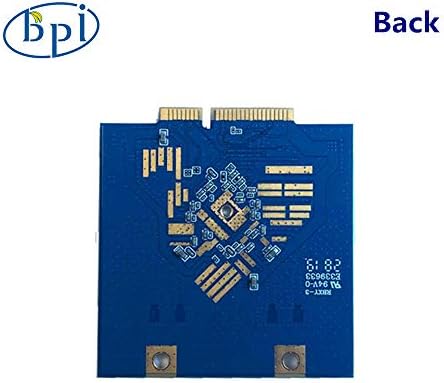

BPI-MT7615 802.11 Ac WiFi 4×4 Dual-Band Module Based on MTK MT7615 Chip Design, Support Banana Pi R2 and R64 Router

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Features
Support 4×4 4SS 11ac wave2 MU-MIMO and 160MHz channels
Mu-MIMO configurations of-4 Users:4*1SS
-3 users:2*1ss+1*2ss or 3*1ss
-2 users:2*2ss or 1*1ss+1*2ss or 2*1ss
support 5,10,20,40,80,80+80,and 160MHz channels
Embedded ARM cortex R4 processor for full host CPU offload.
Embedded 32-bit RISC microprocessor.
iNIC Gen2 with full Wi-Fi offload
Highly integrated RF with 40nm low power process.
4T4R with support of up to 1733Mbps PHY rate.
Configurable 4×4/3×3 or 2x2n+2x2ac DBDC
Noise mitigation:-Supports backgound scan funtion for fast channel switching.
-Supports spectrum analysis for non-Wi-Fi signals
Intellgent power saving
Hardware-based Airtime Fairness(QoS)
Integrate high effciency internal 2.4G/5G PAs
Intelligent Calibration(iCal)reduces the production time
Supports external PA/LNA/TRSW design
WoWLAN via GPIO(client mode),spports Host Sleep(AP mode)
Compact 12mm*12mm DRQFN118 package with PCIe Gen2 interface.Compatible with BPI R2 and R64 Board
-Tech-support-
Wiki: http://wiki.banana-pi.org/BPI-MT7615_802.11_ac_wifi_4x4_dual-band_module
Get Started: http://wiki.banana-pi.org/Getting_Started_with_R64
Forum: https://www.youyeetoo.net/
http://forum.banana-pi.org/
BPI-R64 + MT7615 function test
:http://wiki.banana-pi.org/BPI-R64_%2B_MT7615_function_test
Tech-Team: [email protected]     Skype: monica_9122
[Reliable WiFi chip]MT7615 is a highly integrated Wi-Fi single chip which support 1733 Mbps PHY rate,It fully compies with IEEE 802.11ac and IEEE802.11 a/b/n standards,offering feature-rich wireless connecivity at high standards,and delivering reliable,cost-effective throughput from and extended distance
[Low Power Consumption]Optimized RF architectue and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient offload engine ,and hardware data processing accelerators which completely offloads Wi-Fi task of the host processor
[Professional Design]MT7615 is designed to support standard based features in the areas of the host processor.MT7615 is designed to support standard based features in the areas of security quality of service and international regulations.giving end users the greatest performance any time and in any circumstance
[Dual Band WiFi Support]MT7615 supports concurrent dual-band operation at 5GHz and 2.4GHz band(DBDC,Dual-Band-Dual-Concurrent.It enables diversified applications that require one link at 2.4GHz band,and the other at less crowded 5GHz band simultaneously
[AP Modde]With the advent of 802.11ac,multiuser MIMO(MU-MIMO) is defined. Mt7615 supports MU-MIMO with defferent configurations.An AP is able to use its antenna drrays to transmit multiple frames to defferent clients at the same time and over the same frequency spectrum
